ELECTRICAL CHARACTERISTICS
PHYSICAL CHARACTERISTICS
P/N

RATED
CURRENT
(Amperes)

RATED
VOLTAGE
(Volts)
LINE
FREQ.
(Hz)
MAXIMUM
VOLT. DROP
(Volts)
REACTIVE
CURRENT
(Amperes)

SHUNT
CAPACITANCE
(Mfd)

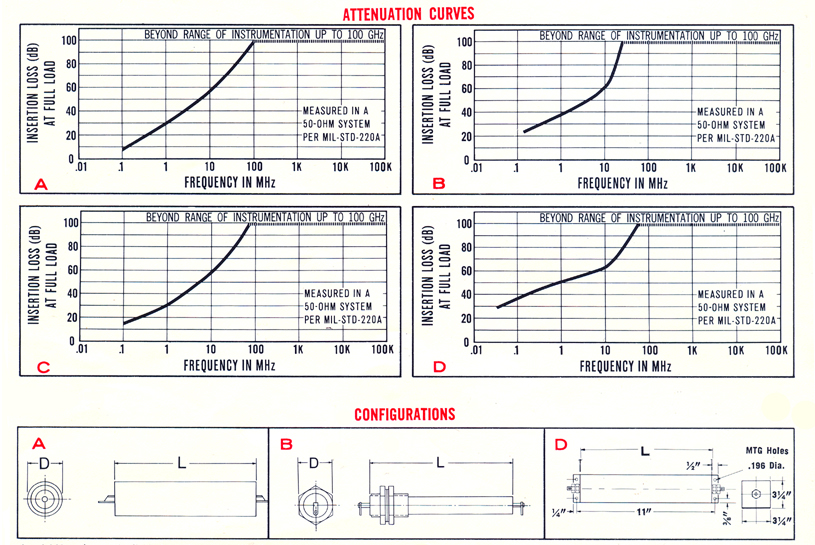

ATTENU-
ATION
CURVE

 L
(Length)

D
(Diameter)
WEIGHT
CONFIGUR-
ATION

B2
2
2
2
500
125
125
DC
60
400
Negligible
.15
1.0
Negligible
.006
.04

1.
1.
1.


A

2 11/16"

.400

2 oz.

A.B.C.

A5
6
5
5
500
125
125
DC
60
400
Negligible
.15
1.0
Negligible
.047
.34

1.0
1.0
1.0


B

4"



5/8"

5 oz.

A.B.C.

A10
6
5
5
500
125
125
DC
60
400
Negligible
.15
1.0
Negligible
.006
.04

1.
1.
1.


C

3 7/16"

5/8"

1.4 oz.

A.B.C.

A20
6
5
5
500
125
125
DC
60
400
Negligible
.15
1.0
Negligible
.047
.34

1.0
1.0
1.0


B

4"



5/8"

2.5 oz.

A.B.C.

A30
6
5
5
500
125
125
DC
60
400
Negligible
.92
.9
Negligible
.015
.1

.25
.25
.25


C

419/32"



7/8"

6 oz.

A.B.C.

A50
55
50
50
500
125
125
DC
60
400
Negligible
.15
1.0
Negligible
.015
.1
4
4
4

D

10 1/2"


See
Diagram
D

5.5 lbs.

D
