ELECTRICAL CHARACTERISTICS
PHYSICAL CHARACTERISTICS
P/N

RATED
CURRENT
(Amperes)

RATED
VOLTAGE
(Volts)
LINE
FREQ.
(Hz)
ATTENU-
ATION

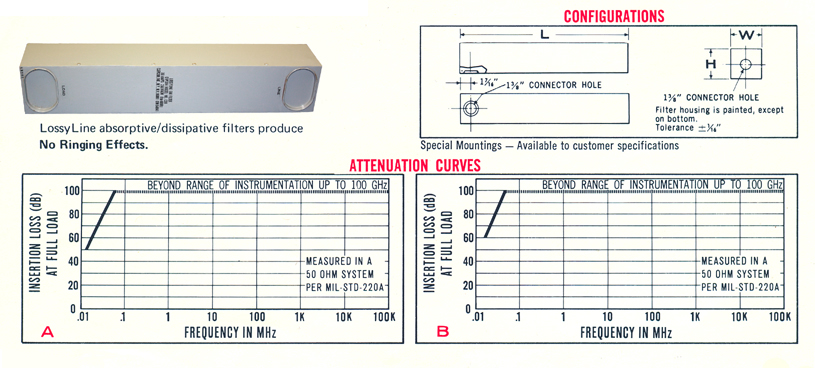

CURVE

 L
(Length)

W
(Width)
H
(Height)
WEIGHT

D30
35
30
30
600
250
250
DC
60
400

A

30"

41/8"


41/8"


20 lbs.

D50
55
50
50
600
250
250
DC
60
400

B

30"

41/8"


41/8"


25 lbs.

D100
110
100
100
600
250
250
DC
60
400

B

30"

10"


5"


50 lbs.


ELECTRICAL CHARACTERISTICS
PHYSICAL CHARACTERISTICS
P/N

RATED
CURRENT
(Amperes)

RATED
VOLTAGE
(Volts)
LINE
FREQ.
(Hz)

 L
(Length)

W
(Width)
H
(Height)
WEIGHT

E30
35
30
30
600
250
250
DC
60
400

34"

41/2"


41/2"


30 lbs.

E50
55
50
50
600
250
250
DC
60
400

34"

41/2"


41/2"


30 lbs.

E100
110
100
100
600
250
250
DC
60
400

34"

10"


5"


90 lbs.
