Guards Against Conducted and Radiated Interference

• Suppress High Frequency EMI, Harmonics, Transients and Oscillations
• Shields Against Broadband EMI Radiation, Stray Magnetic Fluxes and Coupling










PART NO.


INSIDE
DIAMETER
(Inches)

OUTSIDE
DIAMETER
(Inches)

TOLERANCE
 on I.D.&O.D.
(Inches)
LST-040
.040
.130
±.006
LST-050
.050
.140
±.007
LST-060
..060
.150
±.008
LST-080.080.170±.010
LST-100   .100

.200

±.011
LST-125 .125.225±.011
LST-150 .150.250±.011
LST-175 .175.300±.011
LST-200 .200.325±.011
LST-225 .225
.350
±.011
LST-250  .250 .375±.011
LST-275 .275
 .400±.011
LST-300  .300.450
±.012
LST-325

 .325

.475
±.012
 LST-350      .350     .500       ±.012
 LST-375     .375      .525
      ±.012
 LST-400     .400    .550      ±.013
 LST-425
     .425     .570      ±.013
 LST-450     .450     .600      ±.013
LST-475
     .475      .650
      ±.013
 LST-500     .500      .700      ±.013
 LST-625
      .625      .800      ±.015
 LST-750      .750      1.000
      ±.015
LST-1000      1.000     1.250      ±.015
LST-1125
      1.125    1.375      ±.015
LST-1250
      1.250     1.500
      ±.015

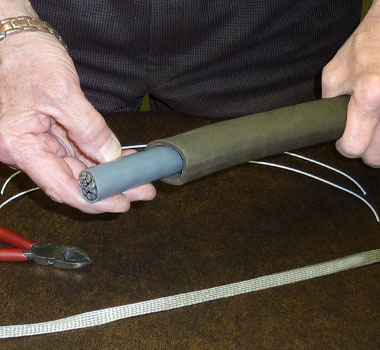

The new EMI Suppressant Tubing provides a simple, low cost
Efficient means for suppressing unwanted EMI. This unique
product can be slipped over standard wires and cables
(insulated or uninsulated) and suppresses both conducted
and radiated interference. Completely flexible and lightweight,
it can be used in temperature environments from –55˚ to +250˚C
without any electrical or mechanical degradation.

Suppressant Tubing will provide shielding from low frequency
electrostatic interference, magnetic fields and will not cause DC
or low frequency AC losses. It is capable of
Handling RF power exceeding 10 watts CW per inch and is
available either shielded or unshielded.

      *Note: 1. Shipped any length desired
                 2. Specify LST for unshielded tubing.
                 3. Specify LSTS for shielded tubing.
                 4. Other sizes quoted upon request.

           MICROWAVE ABSORBERS

     Also available in sheet form in thicknesses of 1/32”,
     1/16”. 3/32”, 1/8”. 3/16” and 1/4”.

     The sheets can be used to line walls of enclosures
     and for free space use. Also for wave guides and
     antenna elements, for covering or wrapping radiating

     elements, for modifying surface currents,
     as terminations, reflectors and other microwave
     applications.

     These sheets have high loss especially in the
     Gigahertz
range, and are highly dissipative.



     They can be cut with scissors so they may be fitted
     to odd shapes.
